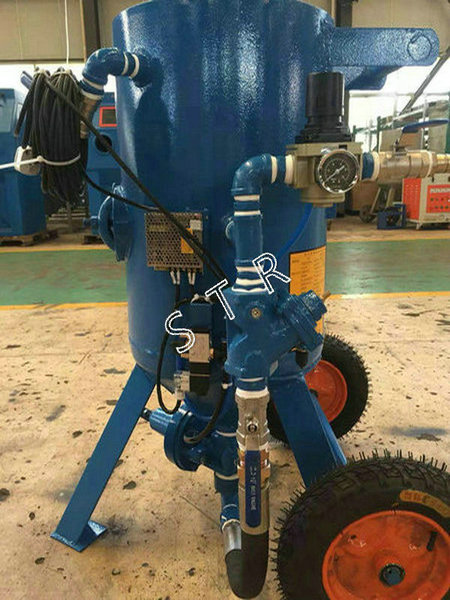

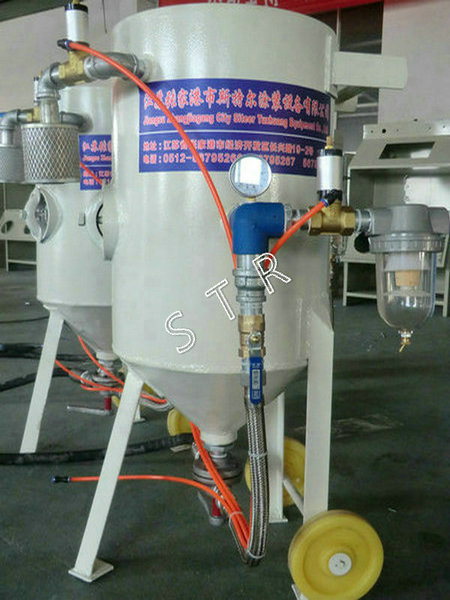

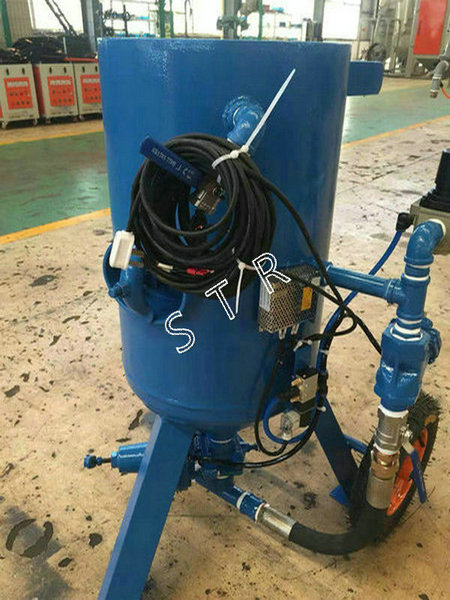

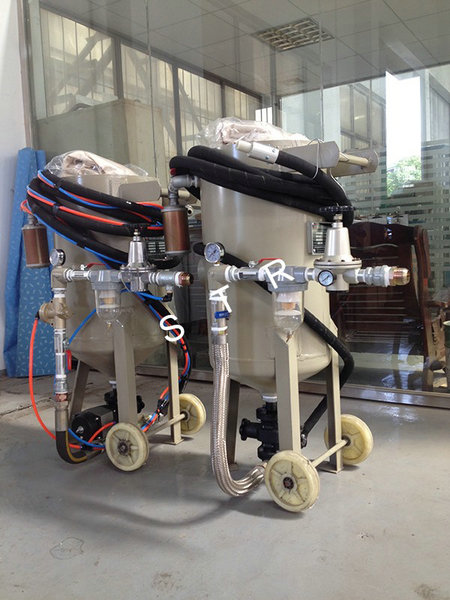

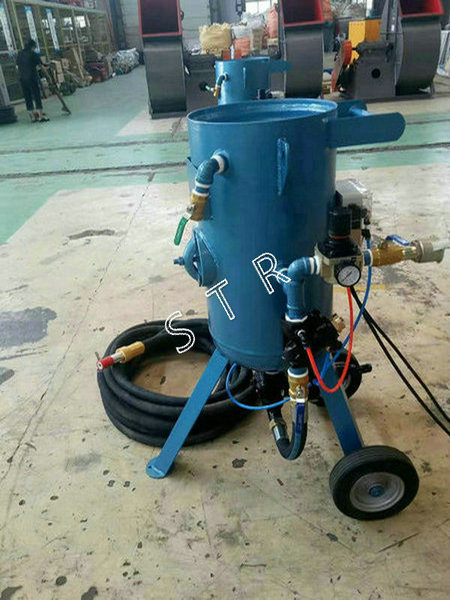

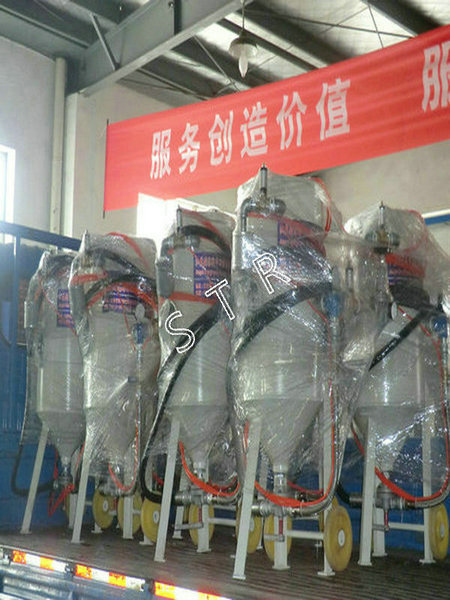

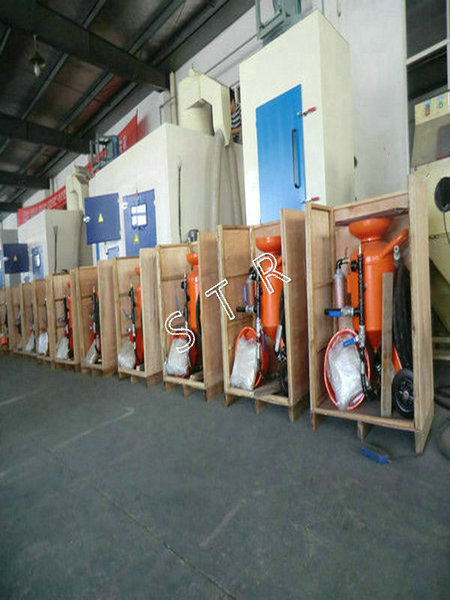

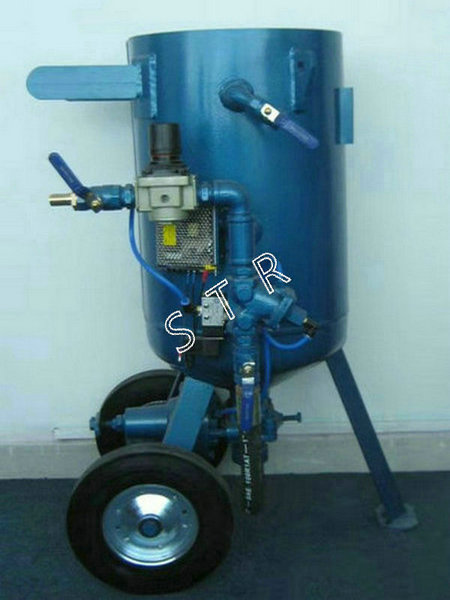

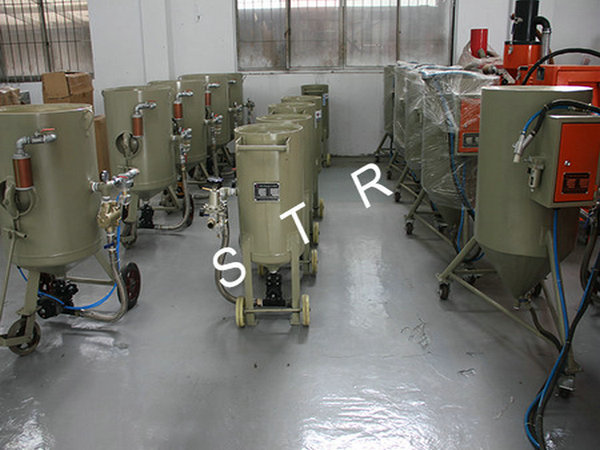

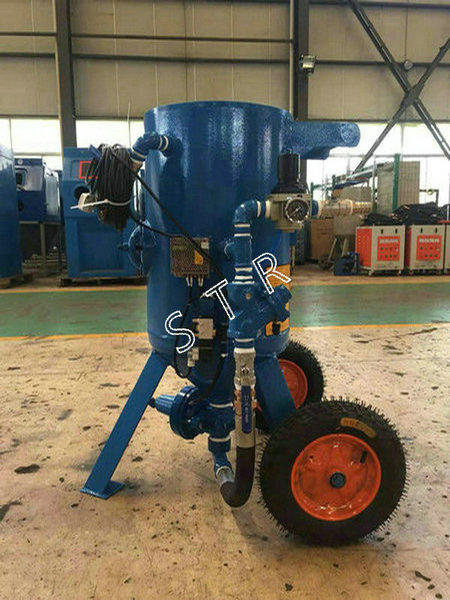

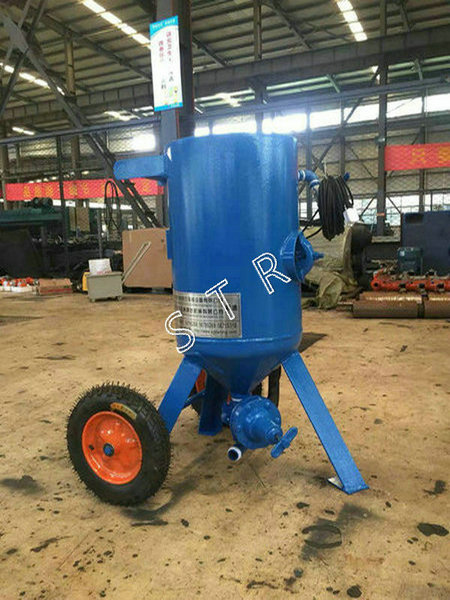

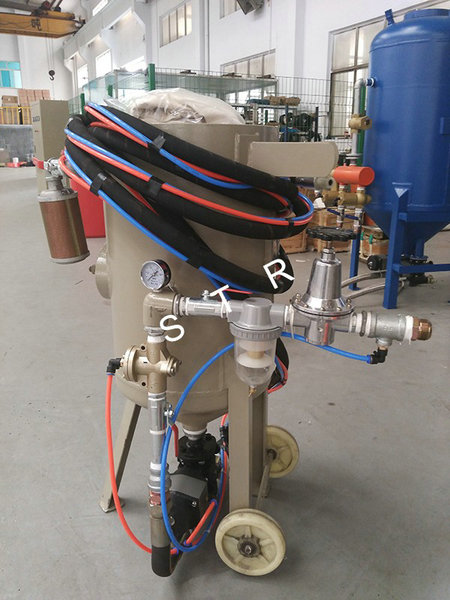

◆貨品共同點 Product features(請我們往下看查看大有量應用案例照片兒供決定性)
1. 可可移動基本運作,實用功能全,服務設施齊,基本運作輕松以便于。
2. 如果具備著縮小水汽源,就能開展優質率的外壁保養及光飾噴砂工作。
3. 可可根據要首選手控式或電控系統噴砂操控策略。
1. Mobile operation, complete functions, perfect facilities, and convenient operation.
2. As long as have compressed air source, can perform high efficiency of the surface cleaning and light act the role ofing sandblasting processing.
3. Can choose hand control or the electric control gush arenaceous operating mode according to need.
◆適合面積 Applicable scope
常用作巨型軸類零件的噴砂工作(如鋼型式、集裝運船修造、厚鋼板、電廠鍋爐、集裝運等)進行清理運行,女式服裝市場牛仔布服遮蓋噴砂。
Application: apply to large workpieces piating (such as steel structure, ship building, steel plates, boiler, container, etc) clean up, jeans garment industry to modify sandblasting.
◆通常工藝基本參數 Main technical parameters
(該產品型號噴砂機有手動式控住 自動控住 液壓控住 萬能遙控控住鑒別具有與保險業務勾通選定)
機子類型 Model |
STR-340 |
STR-430 |
STR-400 |
爐料桶直勁 Abrasive drum diameter (mm) |
340 |
430 |
400 |
非常 Height(mm) |
1000 |
1100 |
1000 |
爐料桶面積 Abrasive drum volume (m3) |
0.024 |
0.06 |
0.1 |
容量 Weight (kg) |
60 |
80 |
90 |
本職工作壓 Work pressure (bar) |
2-8kg,可以調節節 |
2-8kg,可調式節 |
2-8kg,調節器節 |
噴槍規模 Spray gun quantity |
1 |
1 |
1 |
噴水嘴直經 Nozzle diameter (mm) |
¢8或10 |
¢8或10 |
¢8或10 |
噴砂管 Gush arenaceous tube |
5米 |
5米 |
5米 |
有效率 Efficiency(m2/h) |
10-15 |
10-15 |
10-15 |
