無塵自動循環回收噴砂機系列

◆產品性能 Product features（請往前訪問有個量案例庫張片供考生）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”生產線上空氣當中有害氣體衛生學規范。砂料、有害氣體自功收回、溶合、再循環運行，崗位直播整潔無有害氣體影響。機械環保健康制定，遠遠可以改善了工作人員的勞功的強度和課外作業區域配用反吹風傳動裝置，可自己清理掉濾心灰層。內嵌式分水過濾水器。可對解壓縮室內空氣實施再次油水脫離脫離。自己送料，將吸砂頭導入砂料中，啟動的水環真空泵泵系統化將自己送料。PLC可編寫程序調控（配搭），料位報警燈系統(選購)。均有調壓旋轉開關、除塵器原理按紐。固定的氣控平衡裝置與磨料磨具閥。上班直徑20-70米，接觸面外理等級劃分達Sa2.5-3級。設備的安全外墻防水電壓墻壁插座電源開關電源模塊插座電源開關，有利實際操作流程。設備設定電壓航材墻壁插座電源開關電源模塊插座電源開關有利實際操作流程。多樣牢固的防水設定面板價格與電子調節系統箱。系統維護與檢查很有利。車式端蓋構造，防水防雨防水，手機移動有利。端蓋門邊運用安全門瑣聯結，拆御有利。把手電源開關設定（電子調節系統DC24V）。一機三用，包括開放式、工業制造吸砂器、優質型這幾種設配的功能鍵。噴砂服務器主機主要采用特殊化掌控管路，業務壓在0.2Kpa-0.8Kpa條件內任一可以調節，可滿足需要各種不同產品的噴砂加工過程需求。運行條件：防銹處理、除油漆物料染、管道焊接處理（其中包括不透鋼焊接縫簡述較近的去黑、去焊渣正確處置）去飛邊、飛邊、空氣氧化皮、不透鋼，鋁外層能的瑰麗型亞光正確處置（耐污性比較、可遮住刮損）、去混凝土工程土、石雕外層能污圬等正確處置。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆基本技巧參數表 Main technical parameters

系統款式 Model	STR-B型無塵自動循環回收式噴砂機
操作電源適配器 Work power	380V 50HZ
的空氣壓為 Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
三相電機工率 Motor power	4kw
上班學習效率 Work efficiency	6-10m2
事業半經 Work radius	10m 可隨著的需求拉長，重要諮詢售后
的工作樣式 Work form	自動化無限循環收集Automatic cycle recovery
保養檔次 Clean level	Sa2-3
凹凸不平度 Roughness	60μm左右兩
容量 Weight	260kg
外表長寬 Shape dimension	1380×830×1700mm
砂料標準 Sand material specifications	20-100#上（1.0mm-0.04mm）

◆用于範圍 Applicable scope

1.安全規定高且無不管什么吸塵機器設備的公開場合；

2.辦理平衡等級較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

適用區域：防銹處理、除乳膠漆焊接件凈化處理去毛刺發生、飛邊、空氣氧化皮304不銹鋼、鋁板外壁的典雅型亞光清理（耐污性比較好、可遮擋出現劃傷）去混疑土、石雕的表面污圬等清理。

（實際檔案資料可對比A型或致電的方式我子公司）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 物品特色 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已壓縮視頻，目標也是更快捷在戶外工程作業轉動更快捷，很大程度的大大減少了工作剛度，另外清理質量在國內的同種型車輛更快捷；能夠之所急業主的不一樣青睞，并已是能夠了廣泛應用的宣傳和適用！（具有姿料可考慮A型或轉達我工廠）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

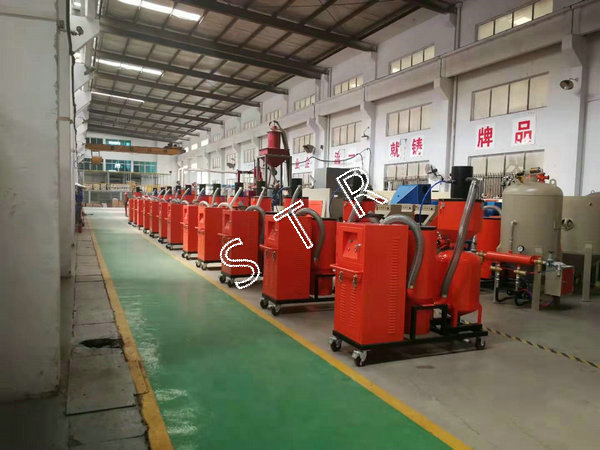

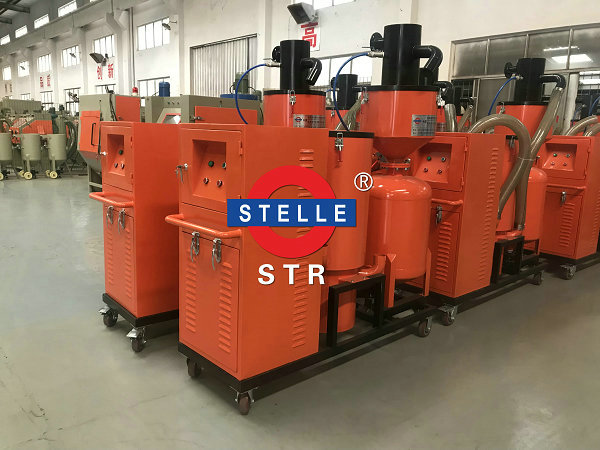

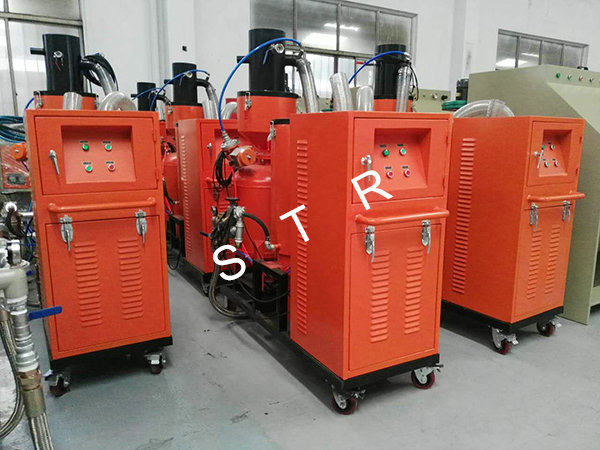

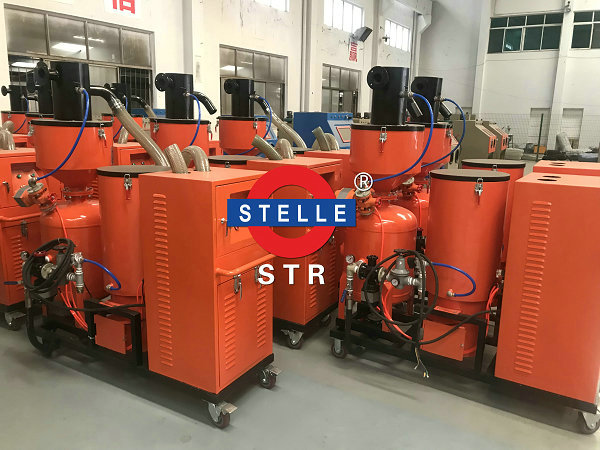

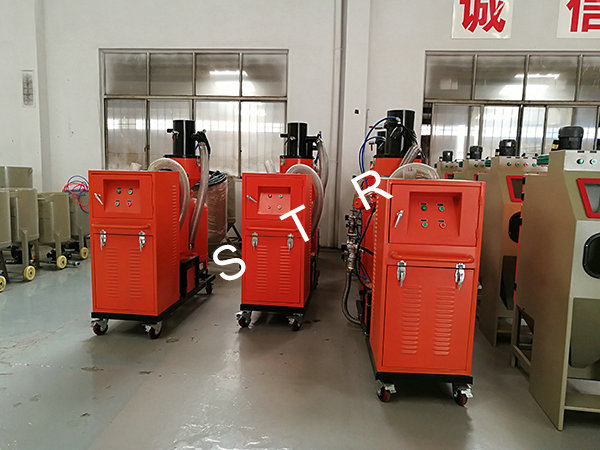

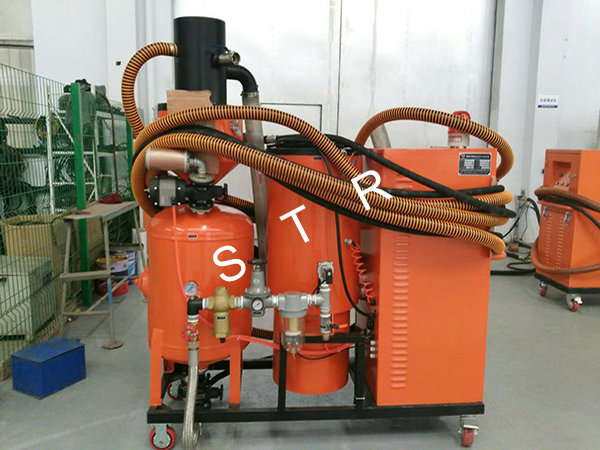

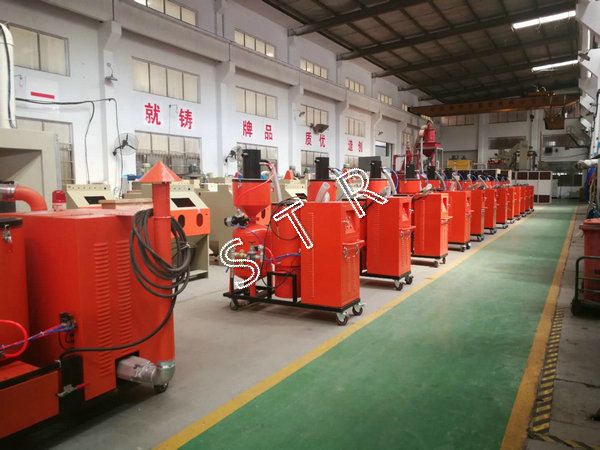

部份無塵自動循環環保型噴砂機案例:
