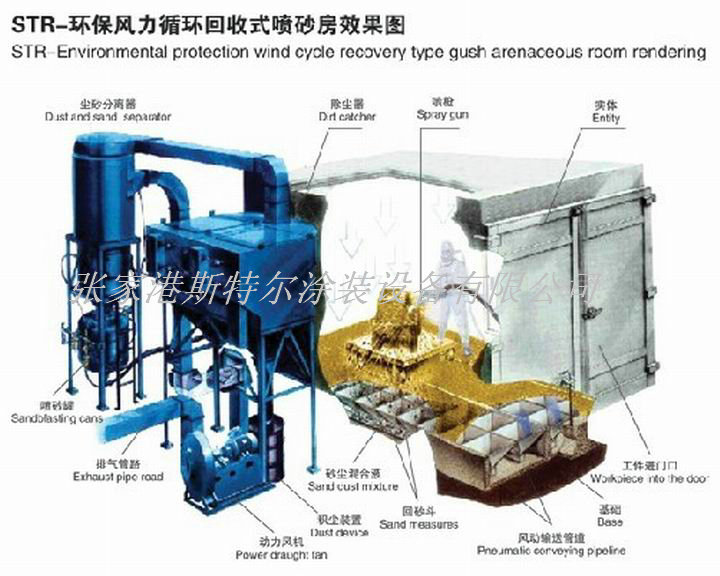

STR-環保風力循環回收式噴砂房效果圖

STR-Environmental protection wind cycle recovery sandblast room designsketch

◆噴砂（丸）房的構造系統

Composition of the sandblasting (shot) room system

1、崗位室  Studio

2、噴砂系統的  Sandblasting  system

3、研磨材料收舊模式  Abrasive recycle system

4、降塵模式  Dust removal system

5、工件表面傳輸系統化  Workpiece conveying system

6、掌控系統性  Control system

7、光照設計  Lighting system

 ◆用于范圍圖 Applicable scope

小型鑄件鍛件、焊接生產鋼型式、電力變壓器機油箱、工程建筑自動化機械設備、軌道車小車、燃氣鍋爐創造、化工類自動化機械設備、運輸船只修造等噴砂除銹設備。

Large castings and forgings welding steel structure, transformer oil tank, engineering machinery, locomotives, boiler manufacturing, chemical machinery, ship building blast cleaned, etc.

 ◆成品優點和缺點 Product features

噴砂房是我公司在蜂窩地板技術的基礎上，自行開發、設計的環保型蜂窩式噴砂（丸）房，可按客戶的產品特性、噴砂要求等設計制作。蜂窩地板噴砂房是利用風機的風力為動力，將磨料通過回料管道吸送到旋風分離器中進行分離，最后進入噴砂系統循環利用。

Sandblasting room  is our company in introducing foreign advanced cell technology based on the floor, , the development, the design of the environmental protection cellular gush arenaceous (shot) room by ourselves, according to customers' product characteristics, sandblasting design requirements, etc. Cellular floor gush arenaceous room is the wind power by fan for abrasive materials, will back through the pipe to cyclone separator suction of separation and finally into gush arenaceous system recycling.

具備接下來的優點：

1、省去了常規噴砂房砂料輸送煤循環系統的螺旋輸送機，斗式提升機以及地下工程，不需建造地坑，節約了地基施工費用，大大節約了工程成本；

2、耐磨材料磨具出售率高，利于清換耐磨材料磨具；

3、包括電氣設備開關元件均主要包括原產廠品，兼具能力增強，安全管理靠譜，安全使用蓄電量長，維系簡單的；

4、噴砂房室體內有高清晰的能見度，室體自然補風，節約能源消耗；

5、機器所應用單級收塵，首先級所應用颶風分離處理器，2、級用過濾芯式收塵系統，其總收塵速率高達99.99%上述；

6、在噴砂房正面房頂上部，配有“聲光報警系統”，在噴砂房內，配有急停呼叫按鈕；

7、各設計自動有效控制選擇互鎖有效控制，當這當中一設計突然出現內部故障時，有關設計均變慢運作，噴槍變慢引射；

8、房體分為產品裝飾性設計的概念，外形簡潔明了、大方、技術規范，降燥使用效果顯著，且怎么安裝高效。

Advantages

1. Omitted conventional Sandblasting room sand conveying coal circulation system, screw conveyor a pattern lift machine and underground project, no need to build the pit and save foundation pit construction cost, greatly reduce the project cost;

2. high  abrasive recycle efficiency, easy to change abrasive;

3. The main electrical components are imported products, have the stable performance, safety and reliability, long life, easy maintenance;

4. Sandblasting room inside has high-resolution visibility, Chambers fill the wind, save energy natural consumption;

5. This machine use double levels of dust removing, the first level is the cyclone separator, the second type is filter dust removal system. Its total removal efficiency may reach above 99.99%;

6. In sandblasting room roof, equipped with a "positive upper sound-light alarm system", in the room, sandblasting with abrupt stop call button;

7. The electric control system uses interlock control, while one system malfunction, related system are to stop working, stop spraying gun;

8. Building decoration design room body appearance, simple , beautiful, standard, good noise reduction result  and convenient installation.
