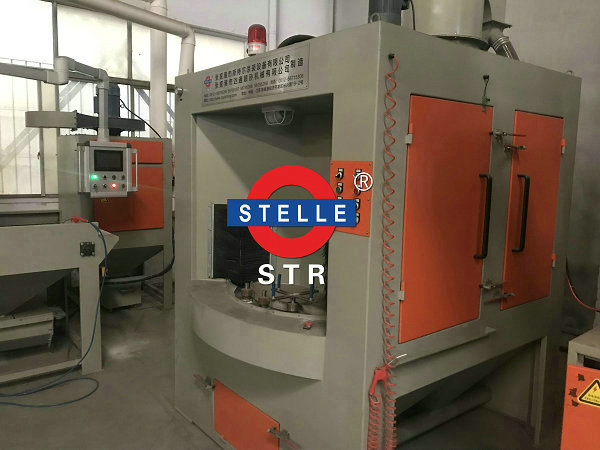

本噴砂機適用于10-490mm直徑不低于的各工件的的前后表層手工制作基本操作噴砂高空作業,清空形象層的油垢、表層除銹設備、表層強化裝備、加快越來越粗糙度、取除表層能力等。(舉列:電飯煲、杯具、不粘鍋、安卓機硬殼、電腦主機硬殼、轉子、切割片特點)可按企業客戶讓訂制單鉗臺或雙鉗臺。
The sandblasting machines apply to 10-490 mm diameter of of all kinds of the internal and external surfaces of the manual operation sandblast homework, remove the dirt, surface derusting appearance, surface strengthening and improving roughness, removing surface stress, etc. (for example: electric meal bao, cup with, titanium, cell phone casing, computer shell, impeller, saw blades, etc) make single or double position according to customers' special requirements.
◆最主要的新技術技術指標 Main technical parameters
廣州POS機形號 Model |
STR-A1500型第十二槍圓輪傾動式 |
STR-A1600型八槍園盤回升式 |
STR-A1600型十四槍園盤換向式 |
機床外形尺寸 Complete machine size(mm) |
1500×2160×3000 |
1600×1800×2500 |
2200×2400×3000 |
工作上艙的尺寸 Working class size(mm) |
Φ1400 |
Φ1500 |
Φ2000 |
收塵箱長度 Dedust box sizes(mm) |
1000×1200×2500 |
1000×1200×2500 |
1400×1400×2500 |
小轉盤數 The small turntable for |
16個 |
8個 |
8個 |
噴槍數 Gun number |
12把 |
8把 |
14把 |
24v電源 Power |
380V380V電 |
380V三相四線電 |
380V三相電機電 |
照明 Floodlight |
2盞防燃燈 |
2盞防燃燈 |
2盞隔爆燈 |
機械設備自重 Machine weight |
800kg |
750kg |
800kg |
