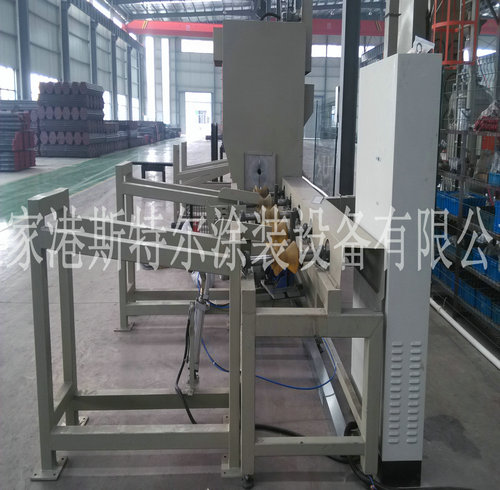

管道外壁自動噴砂機
◆使用范圍之內 Applicable scope
管類鑄件,如:型鋼、槽鋼、連接桿、螺絲桿、玄幻柱體、圓桶類、柱體型鑄件;用到雙槍(可按規定多槍)及颶風式布袋收塵器和光電材料磁感應能力,加快了加工的效率及大幅度的少了檢修率。 (此蘋果機型需既定)
The kind of pipe workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)
◆大部分工藝技術指標 Main technical parameters
機械設備技術參數 Model |

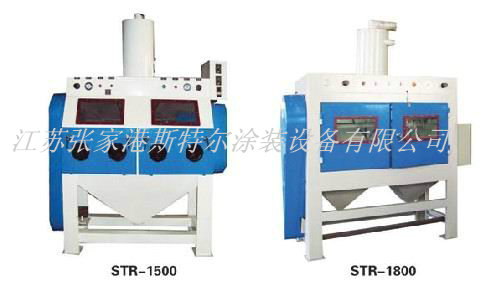

STR-1500管道外壁自動噴砂機 |
STR-1800輥傳動雙槍自動噴砂機 |
作業艙長度 Working class size(mm) |
1000×900×900 |
1800×900×1000 |
整個設備長寬比 Complete machine size(mm) |
1200×900×2900 |
1900×900×2900 |
縮短室內空氣源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
電 Power |
220v 50Hz |
220v 50Hz |
變頻器減速機調節器 Governor |
250W×2 |
250W×2 |
分開器電機的 Separator motor |
380v 50Hz 4kw |
220v 50Hz 1.1kw |
離心分離設備新風量 Air separator |
35m3/min |
35m3/min |
機器設備克重 Machine weight |
900kg |
900kg |
